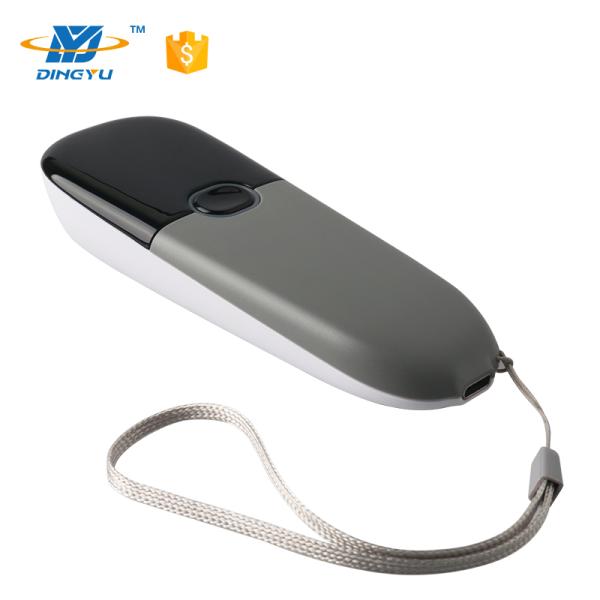

Wireless mini Barcode Scanner Portable 2D Micro USB Barcode Scanner DI9120-2D
Product Description
DI9120 is a high-performance 2D barcode scanner with leading CMOS image recognition technology. It can easily read the paper, goods other media barcodes. Widely used in courier, inventory management and other scenes.
Features
☆ Wearable design, widely used in warehouse, express.
☆ Read all mainstream 1D 2D barcodes in the market easily.(5mil)
☆ Ultra-low power consumption, continuous working time 6h.
☆ 20,000 data storage capacity.
☆ Bluetooth 4.2, intelligent automatic connection when it’s beyond range, not manual setting.
☆ Mode: Bluetooth(HID,SPP,BLE), wired, wireless 2.4G, connected with PC, mobile phone easily.
Application
▅ Courier ▅ Warehouse
Parameter
| Physical parameter | |
| Weight | ≈80g(without cable) |
| Dimension | L49.2mm * W37.5mm * H20.0mm |
| Interface Type | Micro USB |
| Communication way | Wireless Bluetooth |
| Power supply | DC 5V@220mA(work) |
| Performance | |
| Scan type | CMOS |
| Light source | Red light LED 625±10nm(aim),6500K LEDs(lighting) |
| CPU | 32-bit |
| Resolution | 640*480 |
| Resolution | ≥5mil/0.127mm(PCS90%,Code 39) |
| Decoding speed | 65CM/S |
| Depth of field | 40mm-500mm |
| Scan mode | Manual, Auto sense |
| Scan angle | Roll±30°, Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm) |
| Print contrast signal | ≥20% |
| Ambient light | Dark environment, indoor natural light |
| Wireless communication mode | Synchronization, asynchronous, storage mode |
| Wireless transmission distance | Bluetooth 4.0, 30meters(Open distance) |
| Storage | 512K(over 5000barcode) |
| Battery capacity | 1000mAh |
| Battery charge time | 2hours |
| Continuous working time | ≥4hours |
| Symbologies | 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5, Codabar(NW-7),MSI Plessey,RSS,China Post,etc.
2D: QR Code, Data Matrix,PDF417,Maxicode,Aztec,Hanxin,etc. |
| Environmental | |
| Working temperature | 0℃ to 50℃ |
| Storage temperature | -20℃ to 60℃ |
| Working humidity | 5% to 95%(non-condensing) |
| Drop height | 1.5m |
| Transport vibration test | 10H@125RPM |
| Depth of field | |
| 5MIL | 50-90mm (PCS90%,Code 39) |
| 13MIL | 50-210mm (PCS90%,EAN-13) |
| 20MIL | 60-260mm (PCS90%,Code 39) |
| 40MIL | 180-500mm (PCS90%,Code 39) |
| 20MIL | 40-200mm (PCS90%,QR Code) |
| Accessories list | |
| Charging cable | USB, connect the scanner to a host device and charging |
| Power adaptor | Output: DC5V 1A, Input: AC100~240V 50~60Hz |
| Receiver | Wireless receiver, receive and transmit scanner data |
Package Size :110*140*56mm
Size:L49.2mm * W37.5mm * H20.0mm
Weight:≈80g(without cable)
Q: Can i make a trial or sample order before ordering?
A: Yes,sure
Q: How can i print my logo on printer? how much ?
A: Firstly,pls inform us your logo and printing position expected,then we will make sample for your confirmation shortly The cost depends on some factors.
Q: Can we have our logo or company name to be printed on the product or package?
A: Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing, please contact us for more details.
Q: How about your warranty?
A: The buyer will enjoy 1 year warranty since buying from us
Q: If the scanner not working ,how can we do ?
A: pls contact and inform related sales representative with the issues you have
